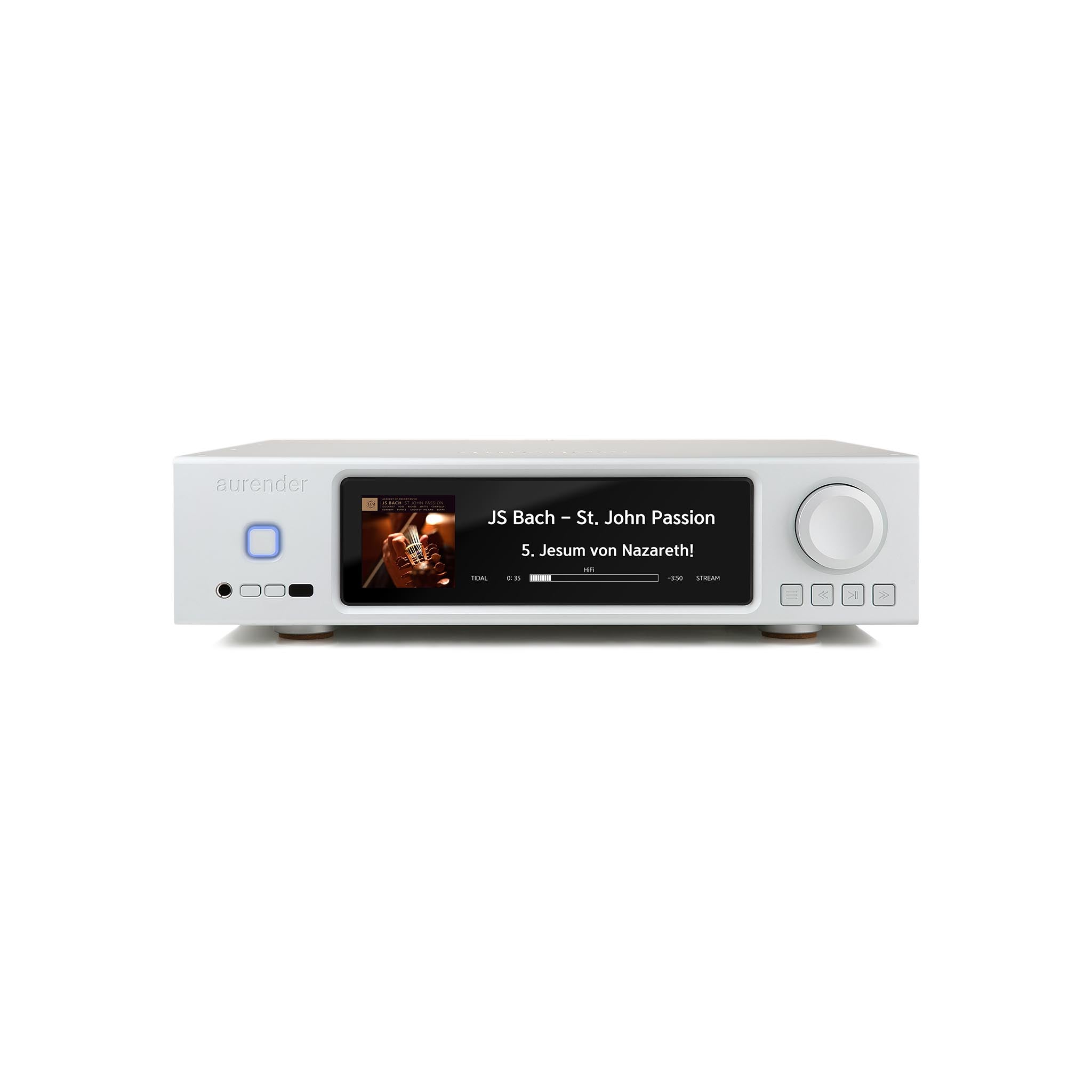

The A20 is based on the flagship A30 streaming DAC and offers the same audio quality with an edited feature set. While the A30 is aimed at customers with large disc collections, the A20 dispenses with CD ripping and metadata handling, and does not come with built-in storage, though you have the option to add two 2.5" drives. The A20 also has fewer headphone outputs, offering just one 1/4" jack.

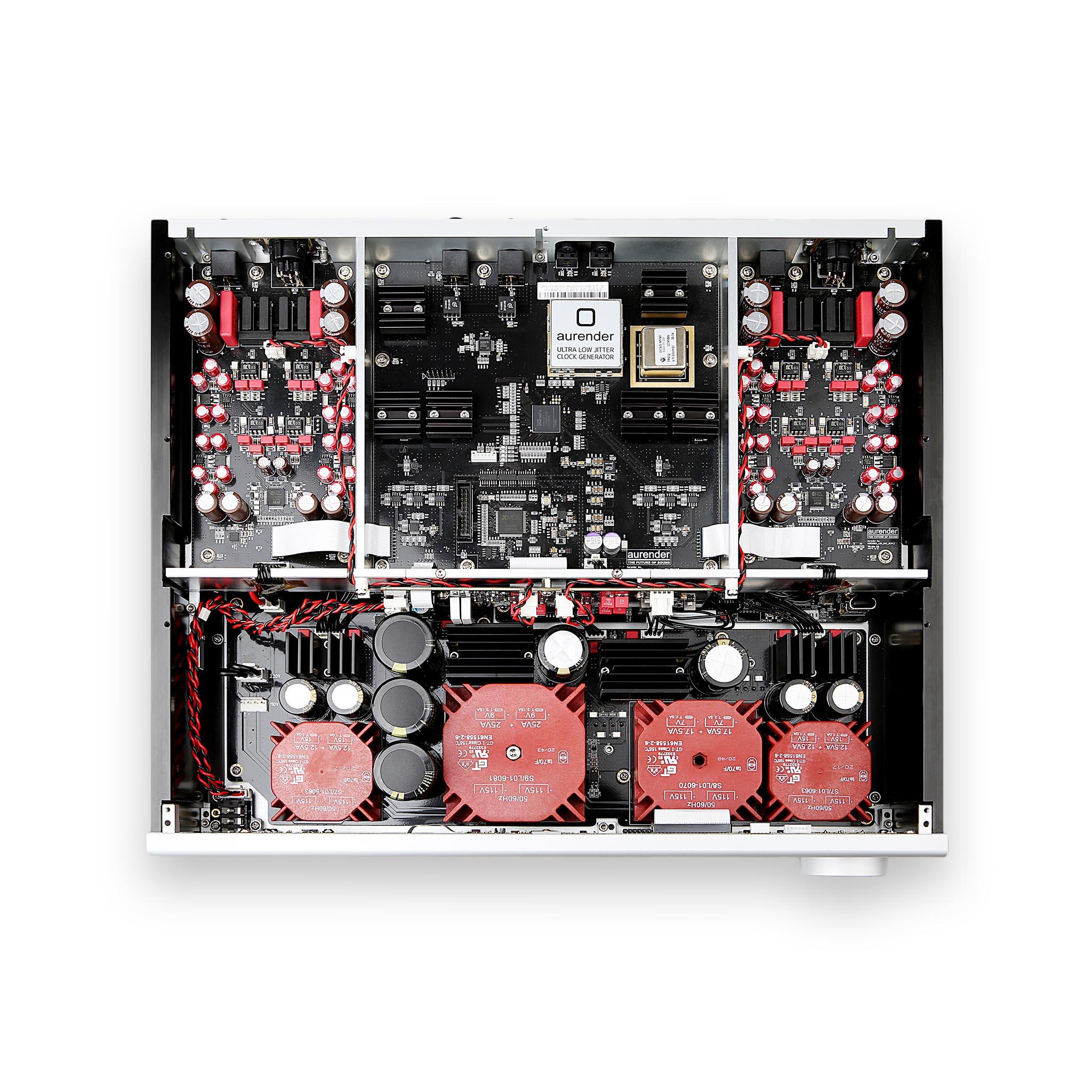

The top-of-the-line dual-mono DAC stage has fully discrete linear power supplies for each channel, and is built around a 768 kHz, 32-bit design using the AKM AK4497 chipset. This all-out attack is designed for the most demanding audiophile with just one shelf of audio rack space, who wants the very best one-box digital source.
Supported formats: DSD(DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE
Sampling rate (PCM/DoP): Up to 768 kHz, 32 bit/DSD256 DoP, DSD512 internal
DAC chip: 2 x AK4497
Digital connections
Output: USB Audio Class 2.0
Input: 1 x RCA S/PDIF, 1 x BNC S/PDIF, 2 x TOSLINK
Other: Gigabit Ethernet, 2 x USB 3.0 A (data)
Analog outputs: 1 x stereo RCA, 1 x balanced stereo XLR
Headphone outputs: 1 x 4 pin XLR balanced, 1 x 4.4 mm balanced, 1 x 6.5 mm unbalanced
Dimensions (WHD): To come
Weight: To come
