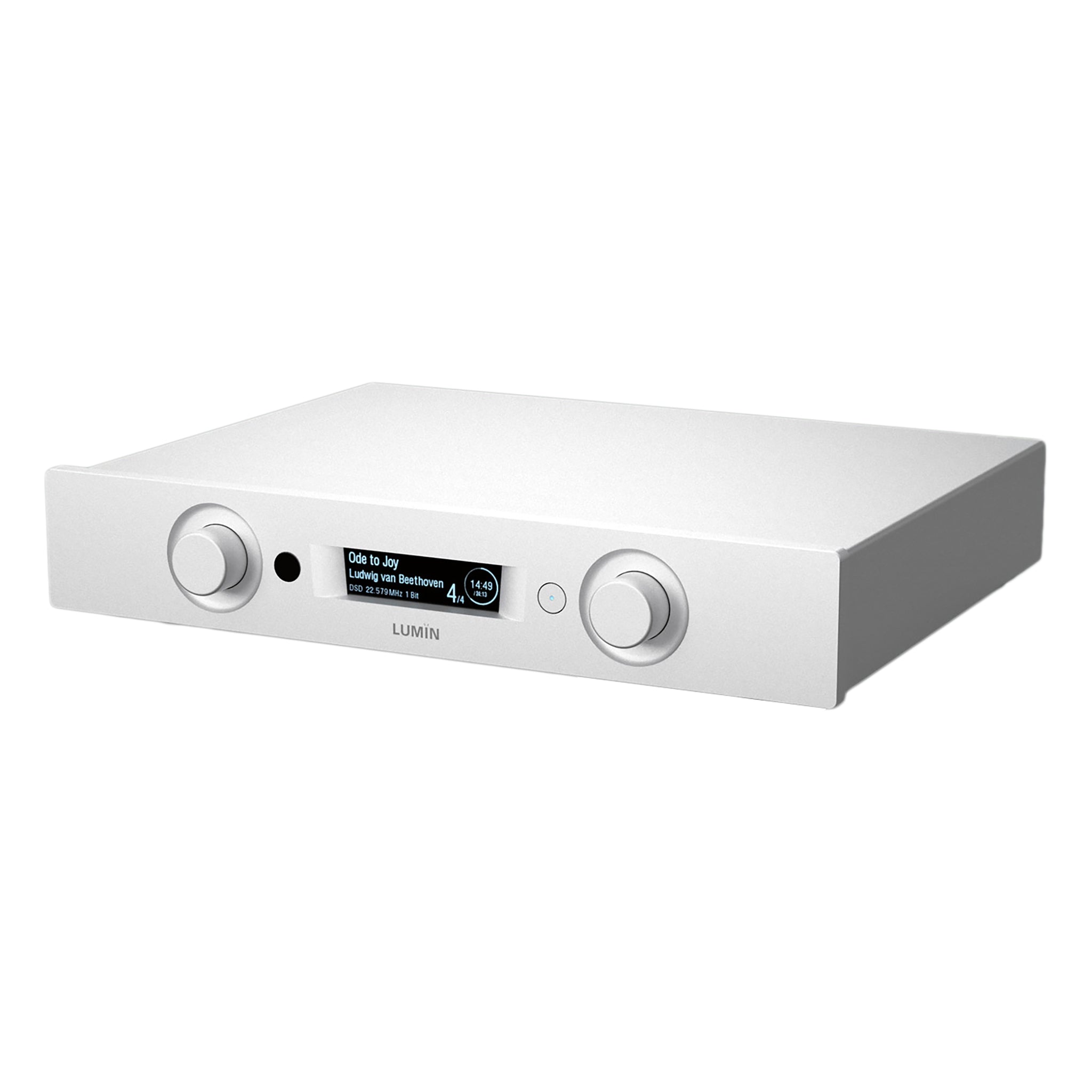

Lumin P1 Mini Preamp / Network Music Player

A Roon Ready Sabre DAC with two Ethernet ports, femtoclocks, and HDMI ARC

The Lumin P1 takes many features from the flagship X1nding LUMIN X1. This streaming DAC and preamp offers optical networking for complete isolation from network noise. Dual network ports mean you can directly connect LUMIN L1 or a NAS.

The P1's dual femto crystal oscillators and Lumin's proprietary FPGA clock distribution from the X1 offer ultra-low jitter performance. The fully balanced dual-mono analog output module uses legendary Lundahl output transformers and is supported by a dual-toroidal power supply.

The roomy P1 chassis provides space to move the X1 toroids inboard for a cleaner installation, while retaining all the benefits of separate analog and digital circuits.

A new tactile infrared remote control allows easy change of input, volume adjustment, playlist navigation and more. A new infrared receiver is compatible with universal remote controls, phones, and automation systems.

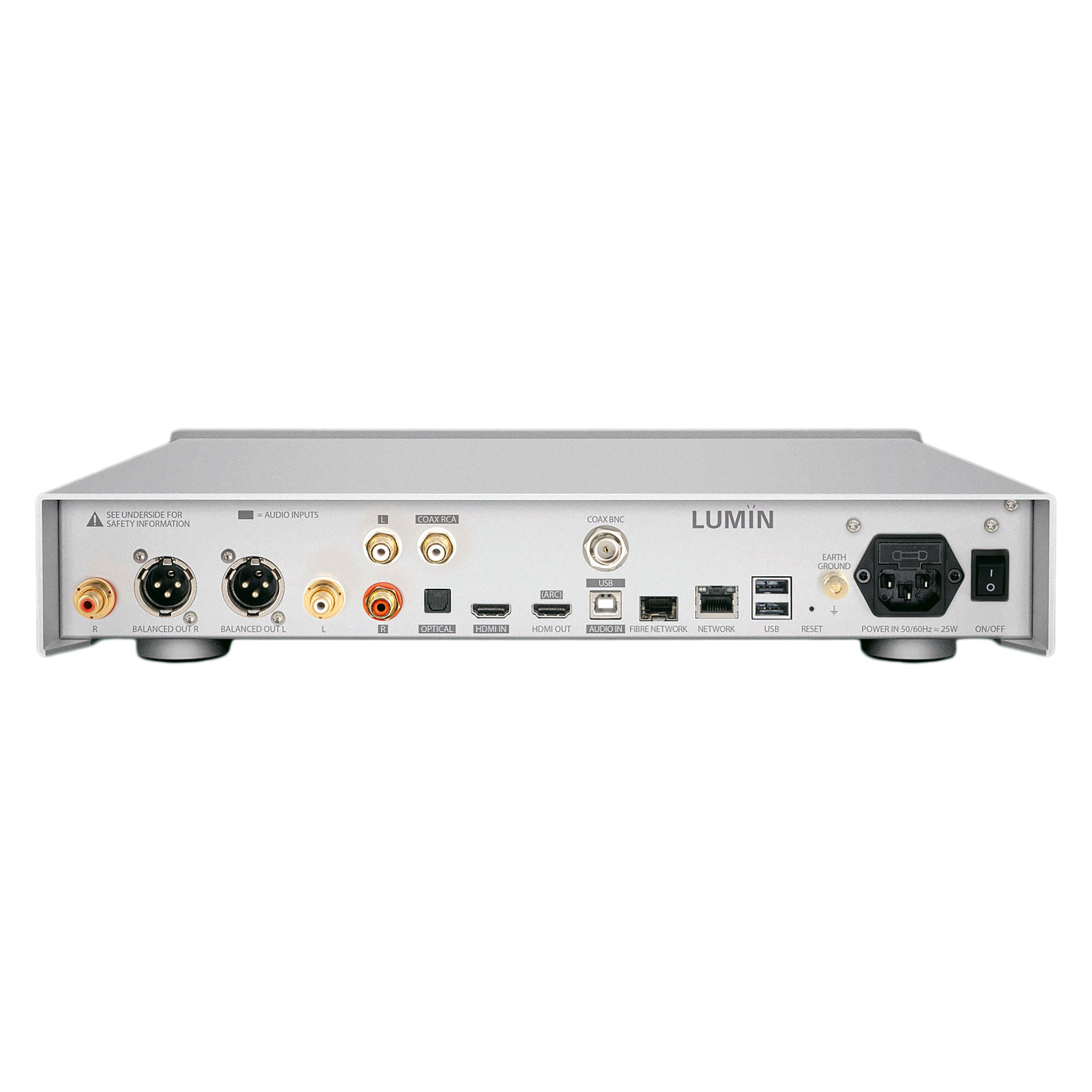

The P1 has nine digital and analog inputs including USB, balanced analog, and HDMI ARC.

Features

• New processor delivers native DSD512 and PCM384 playback
• Dual-mono design throughout maximizes channel separation
• Dual ES9028PRO SABRE DACs
• Femtoclocks with precision FPGA distribution
• New integrated dual-toroidal linear power supply and all-in-one chassis
• Fiber network provides complete isolation from network digital noise
• LEEDH Processing lossless volume control

Specifications

Digital
Inputs: 1 x USB, 3 x HDMI passthrough, 1 x optical, 1 x coax, 1 x XLR, 1 x BNC
Network/Data: 1 x optical SFP, 1 x RJ45, USB
Outputs: 1 x HDMI ARC

Analog
Inputs: 1 x stereo RCA, 1 x stereo XLR
Outputs: 1 x stereo RCA, 1 x stereo XLR

Dimensions (WDH): 13.78" x 14.96" x 4.2" (350 x 380 x 107 mm)

Weight: 26.4 lb. (12 kg)
