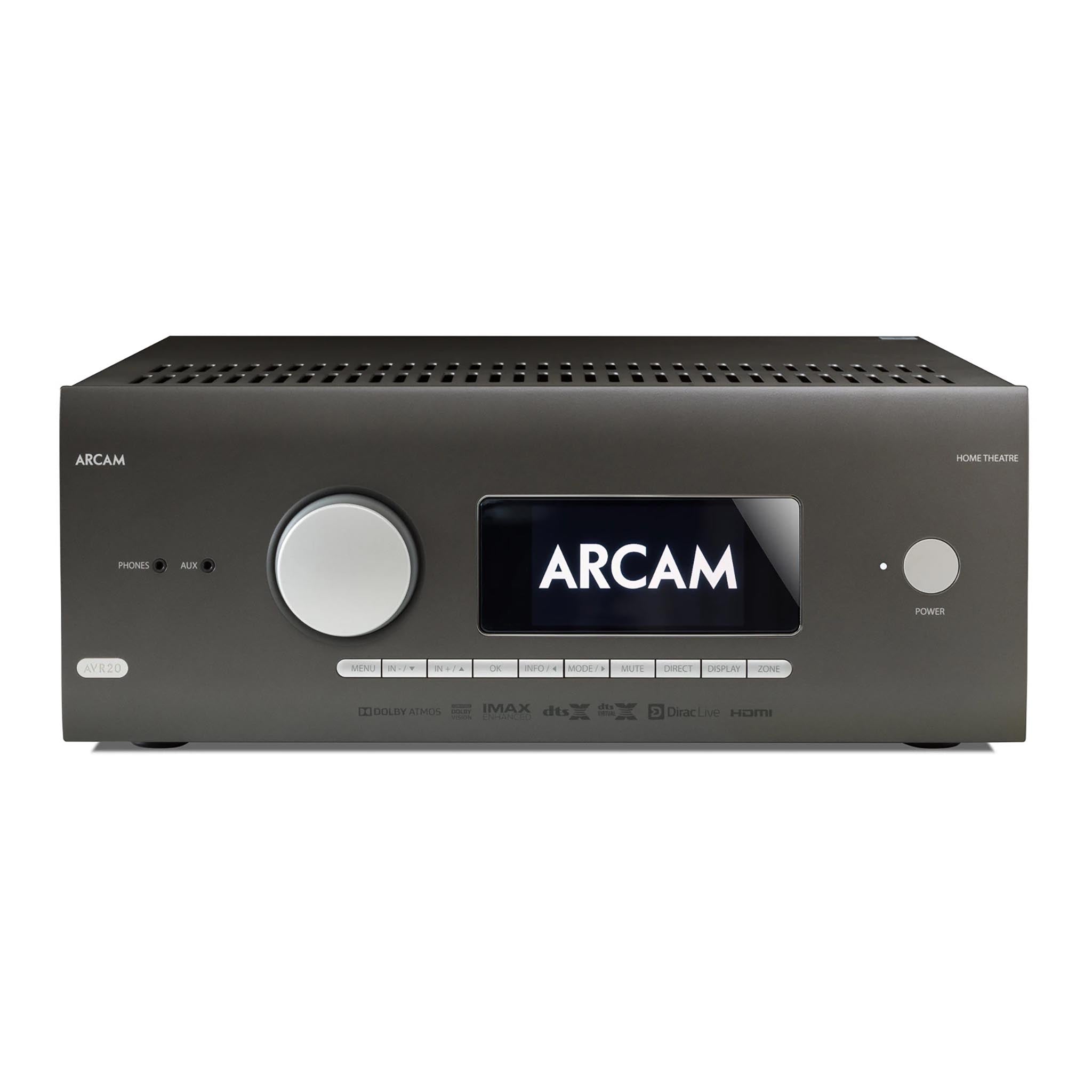

Arcam AVR20

A Roon-Ready 7.2 channel 110 W home theater receiver with Bluetooth® and Apple AirPlay® 2, Dirac room correction, and all the cinema formats you need

The AVR20 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 16-channel surround solution and featuring all the latest CODECs from Dolby, DTS, Auro-3D, and IMAX Enhanced, the AVR20 exemplifies sound quality and engineering excellence.

The AVR20 features the efficient class AB amplification for a level of transparency that delivers the most captivating sound. Audiophile listening experiences are optimized with full 16-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.

Features

• Dolby Atmos , IMAX Enhanced, Auro-3D & DTS:X 9.1.6 decoding
• 4K (UHD) HDMI2.0b with HDCP2.2
• 7 HDMI inputs, 3 HDMI outputs, eARC compatible
• Dirac Live® for Arcam room correction
• ESS 9026PRO audiophile DAC
• Class AB power amplification - Uses toroidal transformer
• Wifi / Ethernet, RS232 and IR control
• Google Cast/UPnP capability for streaming audio
• Bluetooth
• Free MusicLife iOS UPnP and control app

Specifications

Continuous power output
Seven channels driven, 4 Ω / 8 Ω: 90 W / 110 W
Two channels driven, 4 Ω / 8 Ω: 125 W / 190 W

Input impedance: 47 kΩ

Headphone output impedance: <100 Ohm

Dimensions (WHD): 17" x 16.7" x  6.7" (433 x 425 x 171 mm)

Weight: 36.6 lb (16.6 kg)

Included accessories: Power cord, remote control with 2 x AAA batteries, manual, DAB/FM aerial, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable
