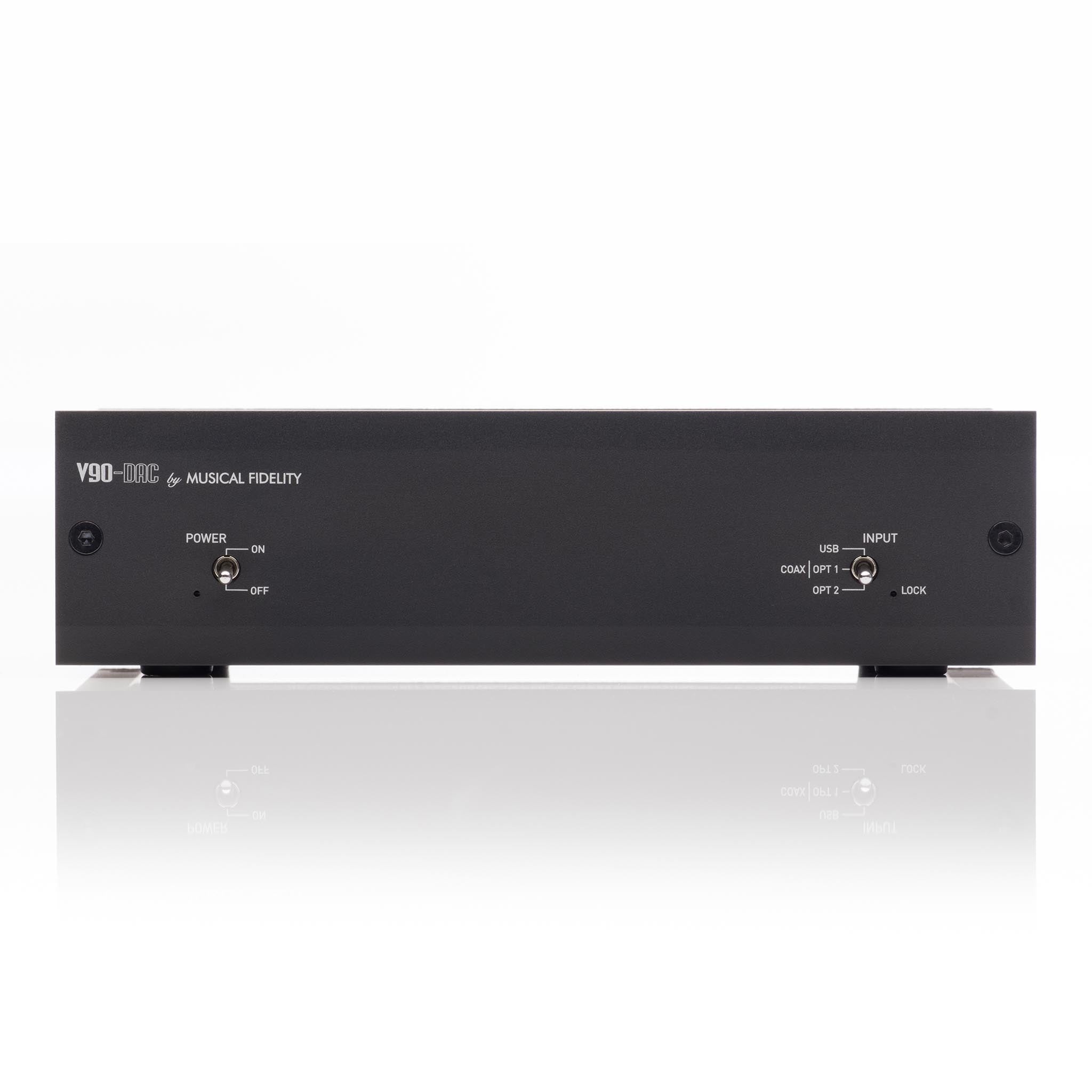

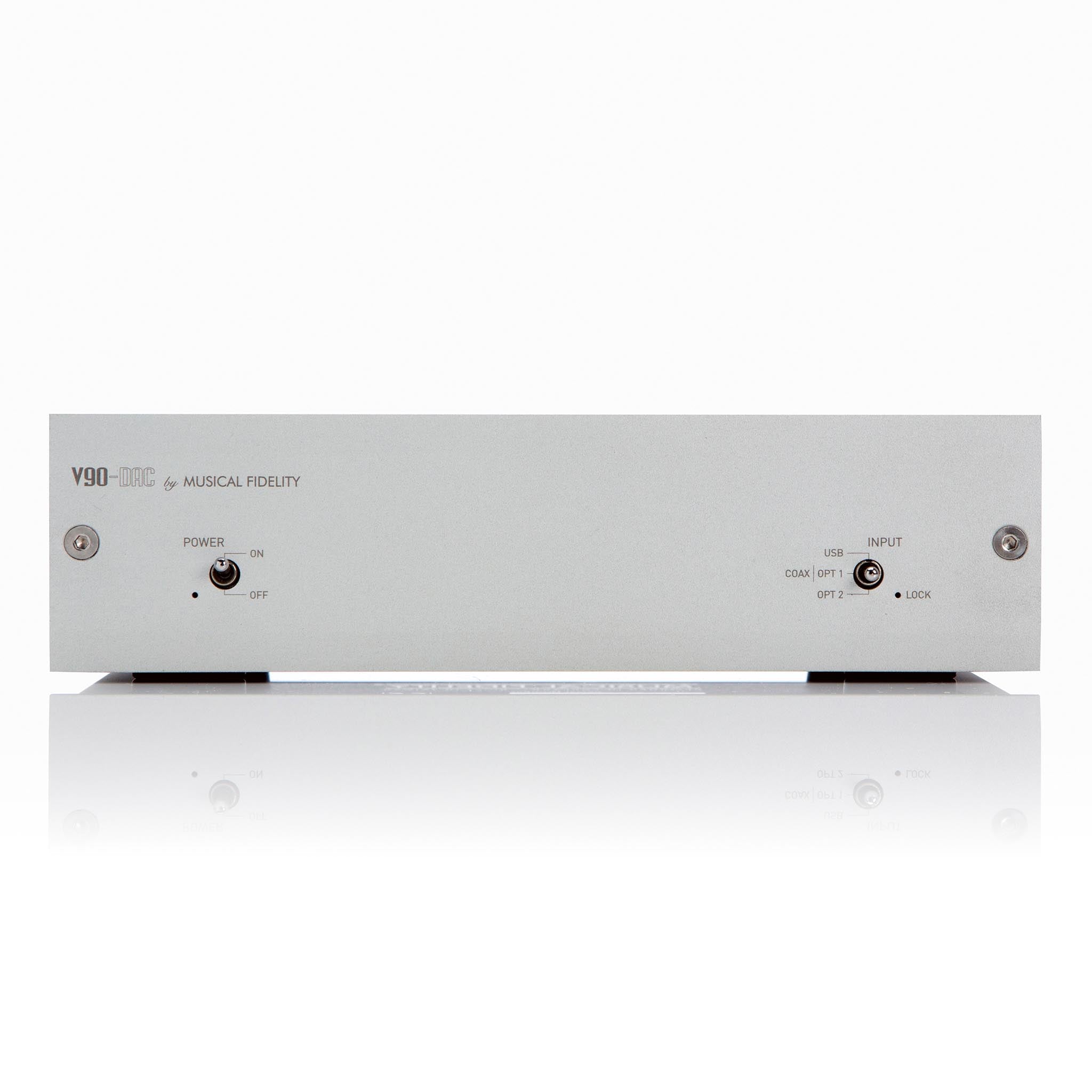

Musical Fidelity V90-DAC

A 32-bit upsampling DAC with RCA, optical, and USB inputs

Musical Fidelity's aim with the V90-DAC was to make the best DAC in the world without breaking the bank.

UPGRADE ALERT - You've got to hear the V90-DAC powered by the Sbooster Audiophile Power Supply. Improved bass slam and definition, more body, ease, and increased air. A huge boost in performance for an already impressive component. Highly recommended.

The Musical Fidelity V90-DAC uses the 12-13V Sbooster, and can also take the upgrade.

V90-DAC D/A converter in brief

• Exceptional technical performance combined with value for money
• Multiple digital inputs – coax, 2 x optical and asynchronous USB
• Low output impedance
• 32bit DAC
• 24bit 192kHz re-clocking and up-sampling on all inputs
• Extended linearity
• Outstanding channel separation
• Beautiful, considered build quality

Performance

• Jitter: <12 picoseconds peak to peak
• THD(+ noise): <0.004% 20Hz to 20 kHz
• Frequency Response: +0, –0.1dB, 20Hz to 20 kHz
• Crosstalk: -104dB, 20Hz to 20 kHz
• Signal / Noise ratio: -117dB, 20Hz to 20 kHz

Inputs

• 1x RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM)
• 2x TOSLINK optical connector 32-96 kbps (16-24 bit stereo PCM)
• 1x USB type ‘B’ connector - Asynchronous data stream at up to 24-bit/96kHz (Determined by source file/computer settings)

Outputs

• 1x line level RCA (phono)

General

• Dimensions - WxHxD (mm): 170 x 47 x 102
• Weight (unpacked / packed): 600g / 1.1 kg

Supplied Accessories

• 1x 12v 500mA DC power supply
