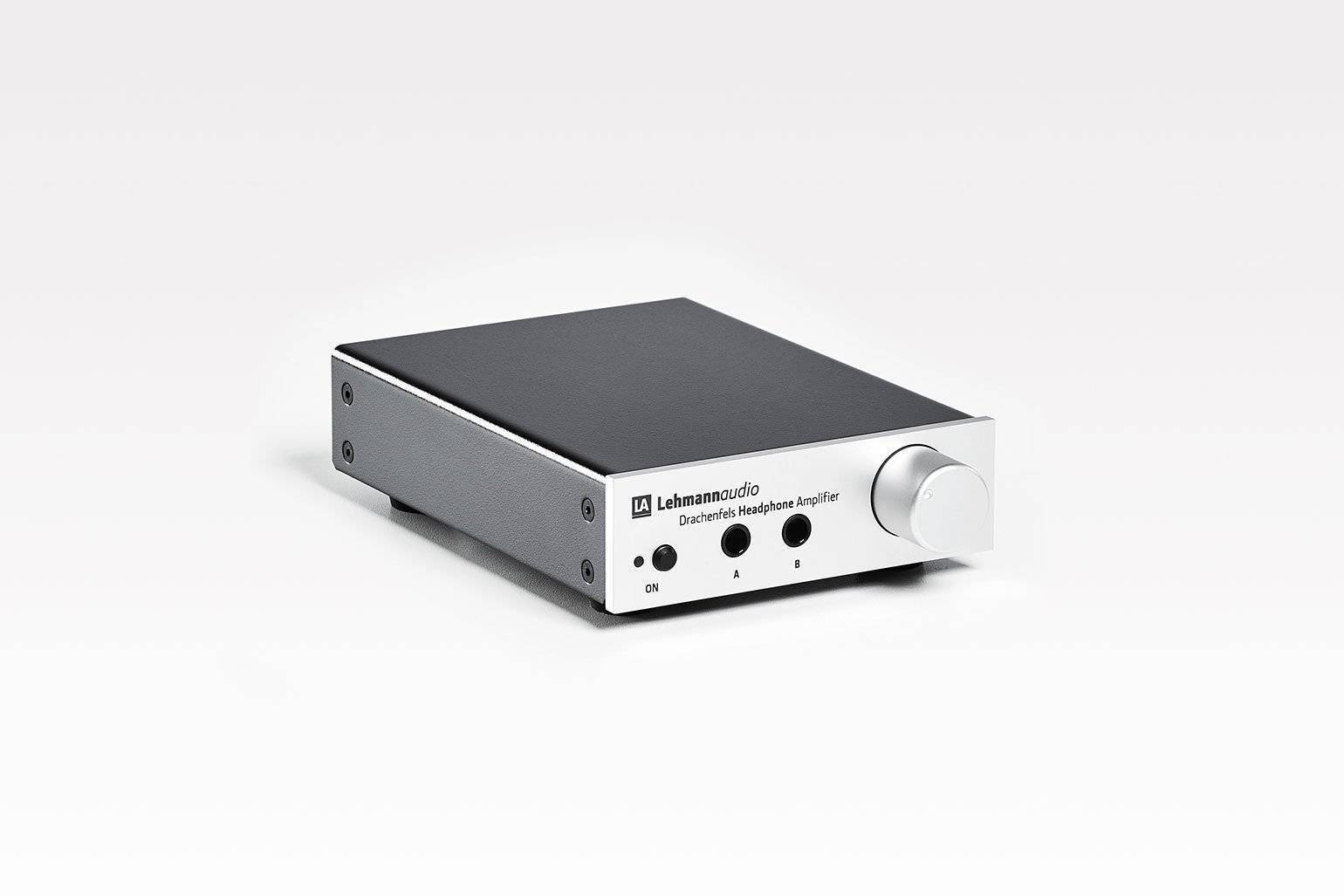

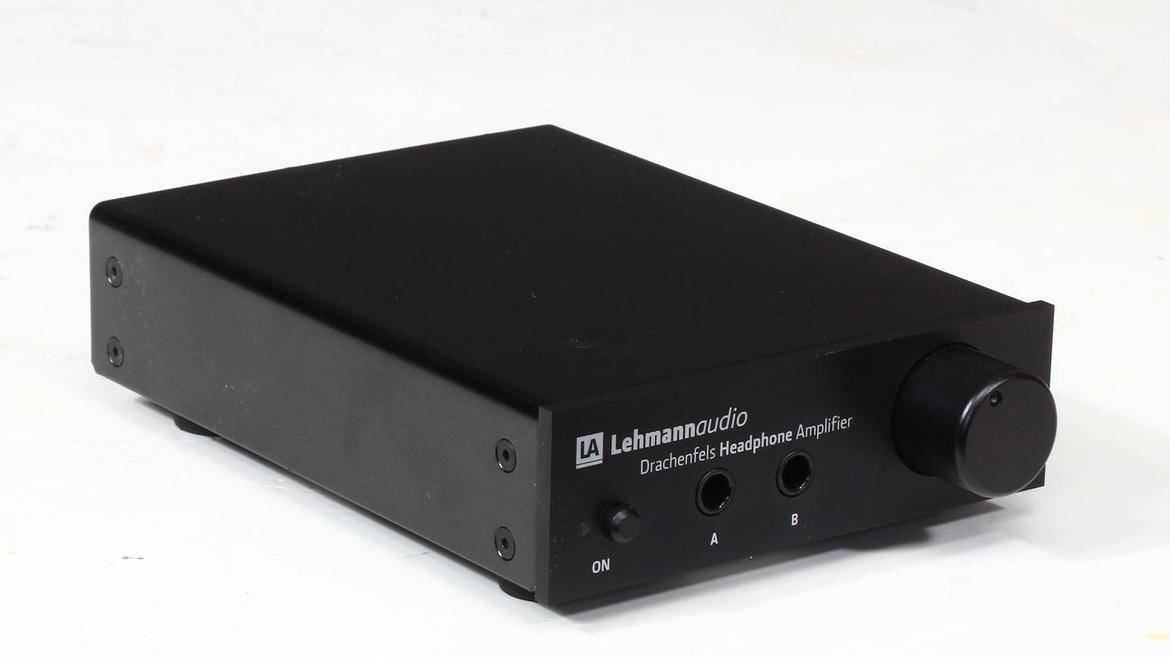

Lehmannaudio Drachenfels Headphone Amplifier
Analogue? Digital? Drachenfels!
The modular design with cutting-edge components opens long-term perspectives for quality-minded music lovers who have demands on sustainability. No matter if streaming via WLAN or ethernet, linking Bluetooth sources or conventional digital players – owing to modular pc boards, which are available at short notice, the Drachenfels gives the right answer to all of these requirements. Even with the advent of new digital standards, a simple swapping of both module and rear panel will enable an upgrade!
The Drachenfels offers 12dB of practice-oriented gain which, due to the smooth running ALPS Blue Velvet potentiometer with excellent synchronism and the ultra low-noise circuit, dispenses with the need for a gain switch. The power switch located on the front reduces the power consumption in standby mode to an eco-friendly value of less than 1 W. Moreover, its space-saving dimensions offer you plenty of placing options for the Drachenfels. Use it as a headphone amplifier or preamp and discover the happiness of intense music listening.
Technical Data
| Input impedance | 47 kOhms |
| Maximum gain | 12 dB with maximum potentiometer setting |
| Frequency response | 10 Hz (-0.3 dB) to 35 kHz (-1 dB) |
| Signal to noise ratio | > 85 dB at gain 0 dB |
| THD | < 0,006 % at 18 mW/330 Ohms |
| Channel separation | > 80 dB at 10 kHz |
| Output power | 330 Ohms/110 mW 33 Ohms/180 mW |
| Output impedance | Line out 105 Ohms Phones out 5 Ohms |

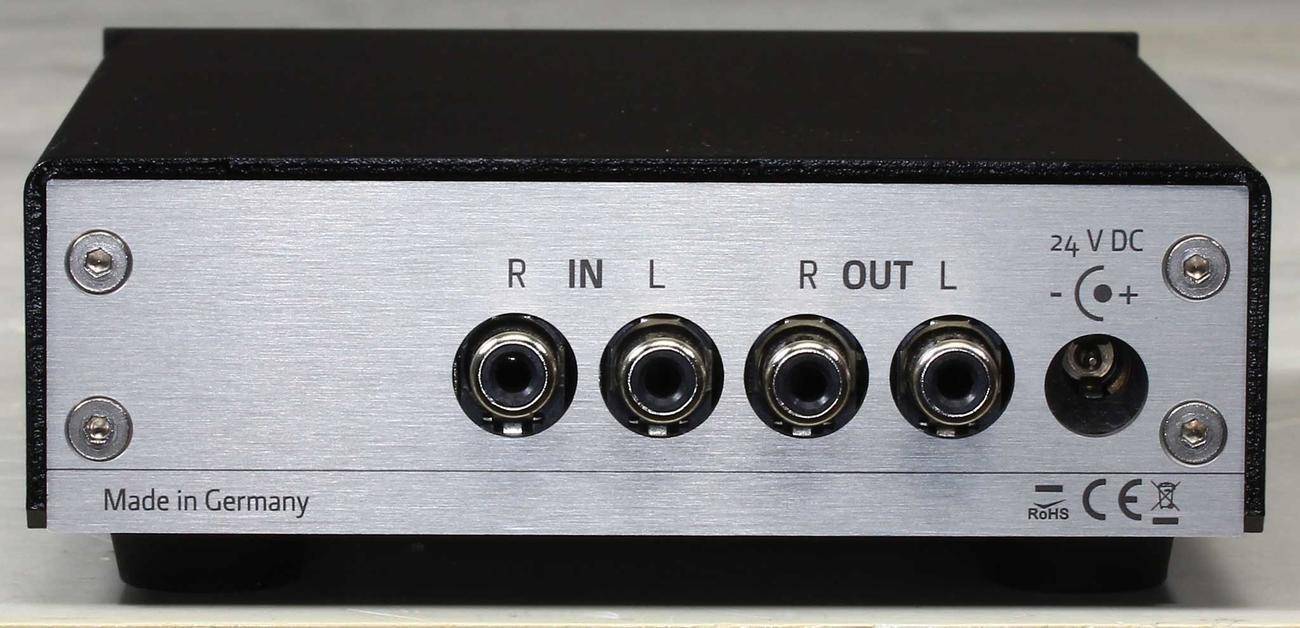

| Connectors audio | Neutrik headphone sockets with gold-plated contacts 1 x switching line out 1 x non-switching line out Line in/line out: RCA |
| Power consumption | app. 4 W through external wide range wall power supply (without any optional pc board) |
| Outer dimensions W x D x H | 160 mm x 120 mm x 43 mm (audio section) |
| Weight | 0.5 kg (1.1 lbs.) net (audio section) |
