The LCR version of the prestigious FA502iC home install loudspeaker has been designed for custom installations where speaker placement is offset from the listening position.

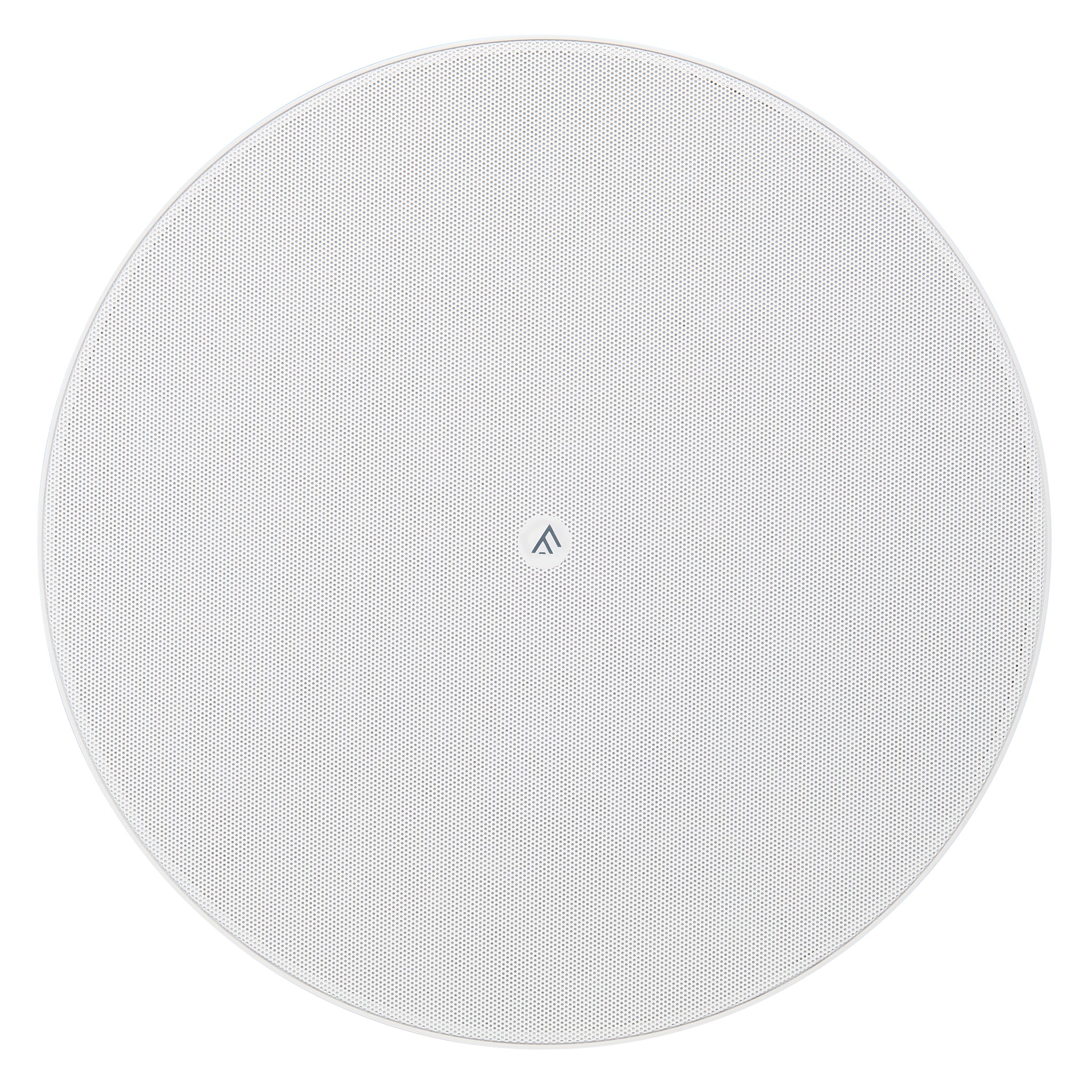

This makes it ideal for the left, center, and right channels of home theater systems. The 8” IsoFlare driver is angled at 15 degrees to the mounting surface. The driver can be orientated in the round cut-out to angle the output directly towards the main listening position. With the same easy fitment, power, and performance of the standard FA502iC, the LCR model builds on the range’s versatility and is supplied with a paintable, low-profile round grille.
Type: 2-way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications
Sensitivity: 91 dB
Nominal Impedance: 8 Ohm
Frequency Response (-6 dB): 35 Hz-34 kHz
Drivers

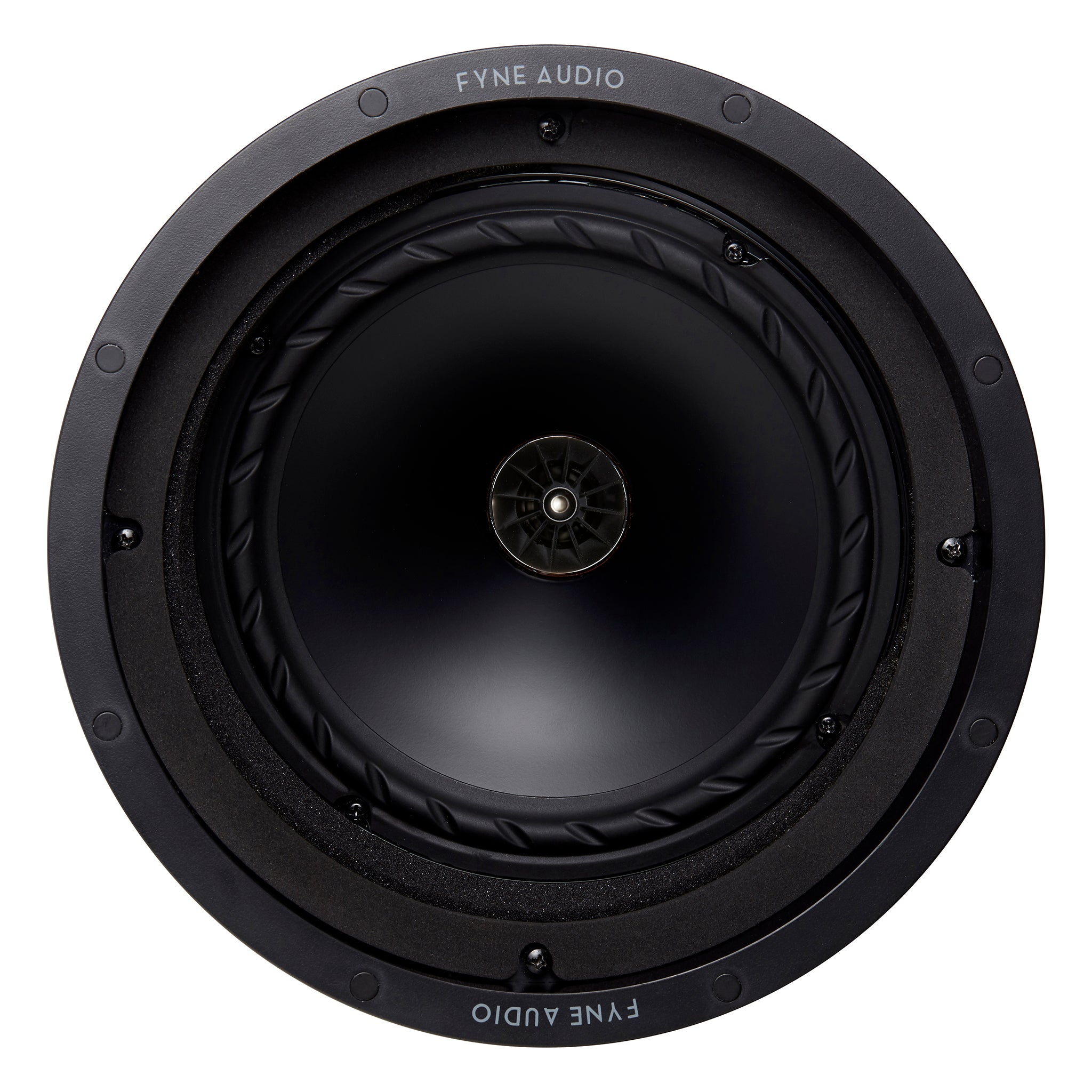

Mid/Bass: 1 x 8" (200 mm) IsoFlare point source driver, multi-fiber
High: FyneFlute surround with 25 mm titanium dome compression
Crossover Frequency: 1.7 kHz
Crossover Type: Passive 2nd order low pass, 1st order high pass
Dimensions
Dia. x Depth: 10.9" x 6.2” (278 x 157 mm)
Round Grille Dia.: 11.3" (288 mm)
Cut-Out Diameter: 10" (255 mm)
Depth behind Mounting Surface: 6.1” (155 mm)
Clamp Travel: 0" - 1” (0 - 26 mm)
Suggested Min. Vol.: 18 L
Weight: 5.2 lb.
