This legendary model was first introduced in 1968 and was the heart and soul of KLH's success through the 1970s. Its acoustic suspension design made it hugely popular and now it's been brought back for 2021, using updated materials and technology, but only where relevant.

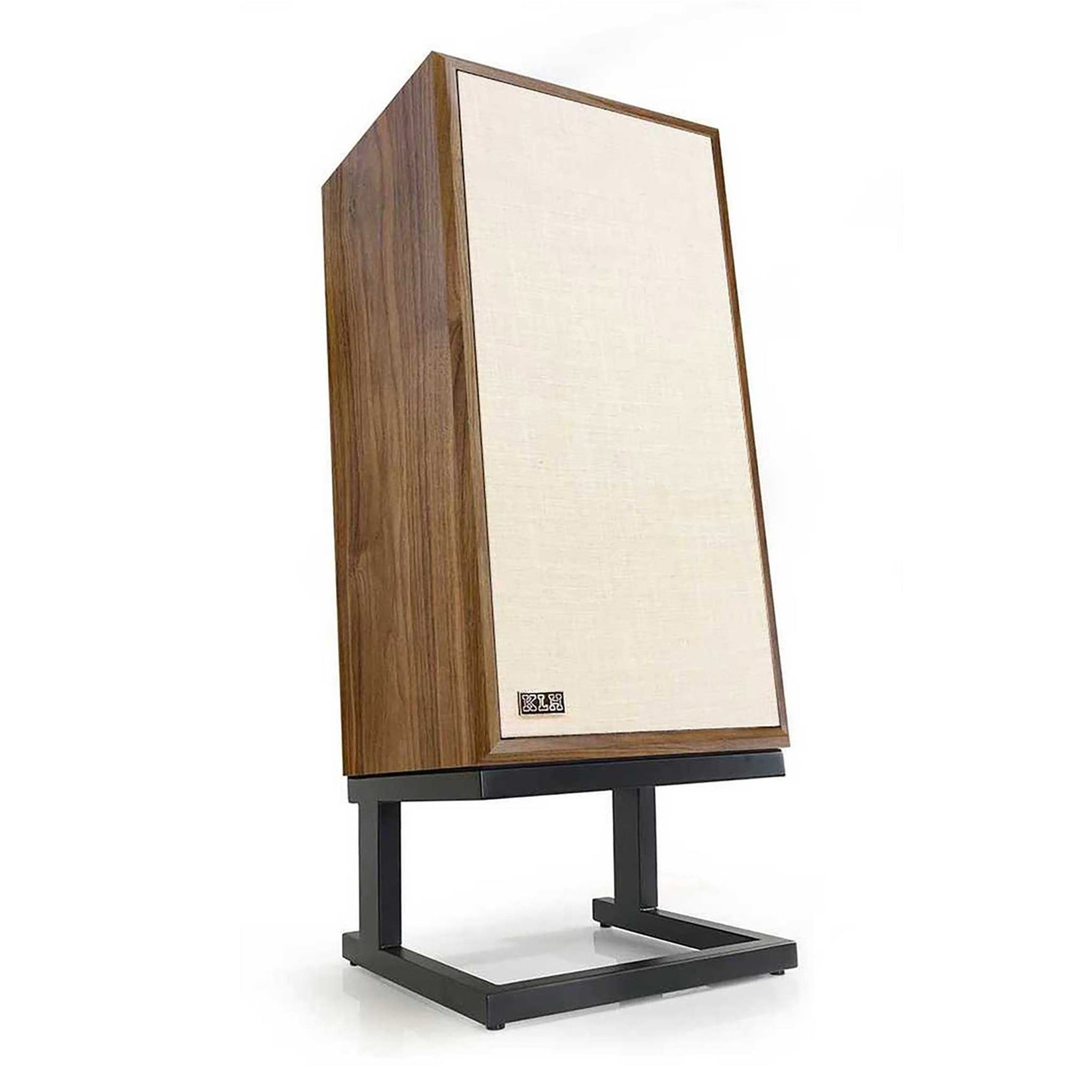

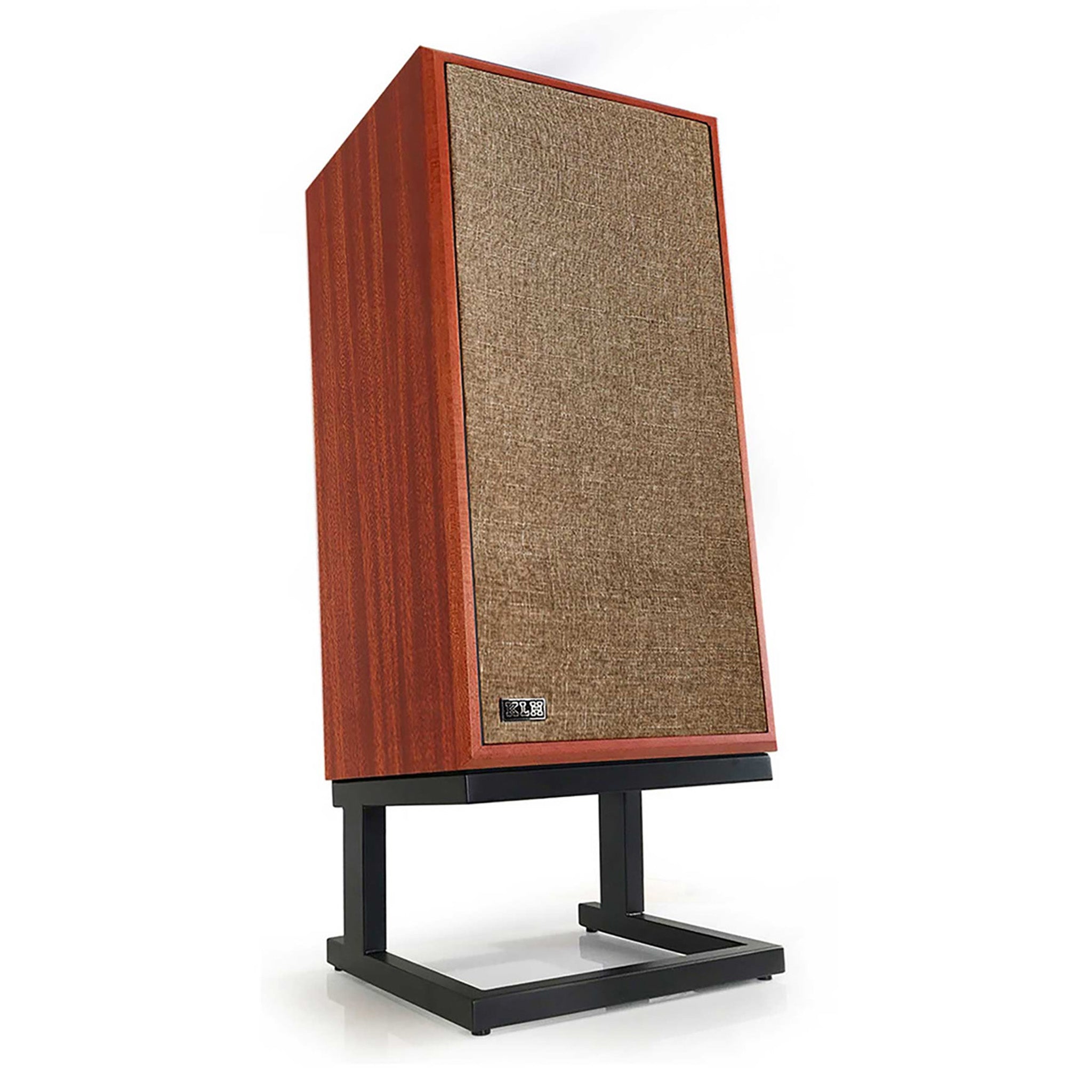

The Model Five comes in two beautiful wood veneer finishes with cloth grilles. The West African Mahogany comes with the Old World Linen grille. The English Walnut comes with the Stonewash Linen grille. The grilles are . Many people like to mix and match!
Frequency Response(+/- 3 dB): 42 Hz to 20 kHz
Low-Frequency Extension (-10 dB): 32 Hz
Sensitivity: 87.5 dB
Impedance: 6 ohms (3.5 ohm minimum @140 Hz)
Horizontal Dispersion: 140°
Crossover Frequency (2nd Order Electro-Acoustic): 380 Hz; 2,850 Hz

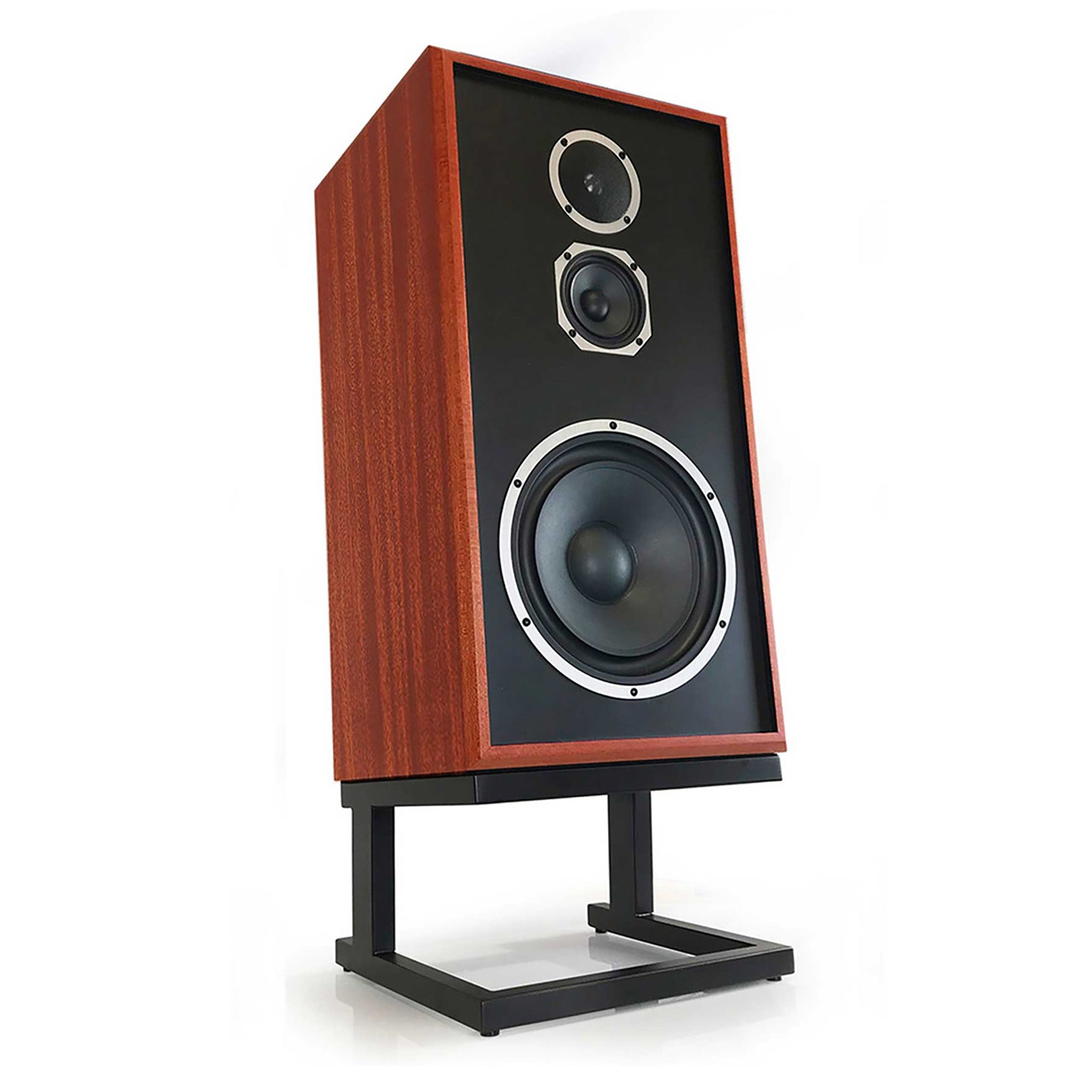

High-Frequency Driver: 1" aluminum dome with soft rubber suspension
Mid-Frequency Driver: 4" pulp-paper cone with reverse roll rubber suspension
Low-Frequency Driver: 10" Pulp-Paper Cone with 2" reverse roll rubber suspension

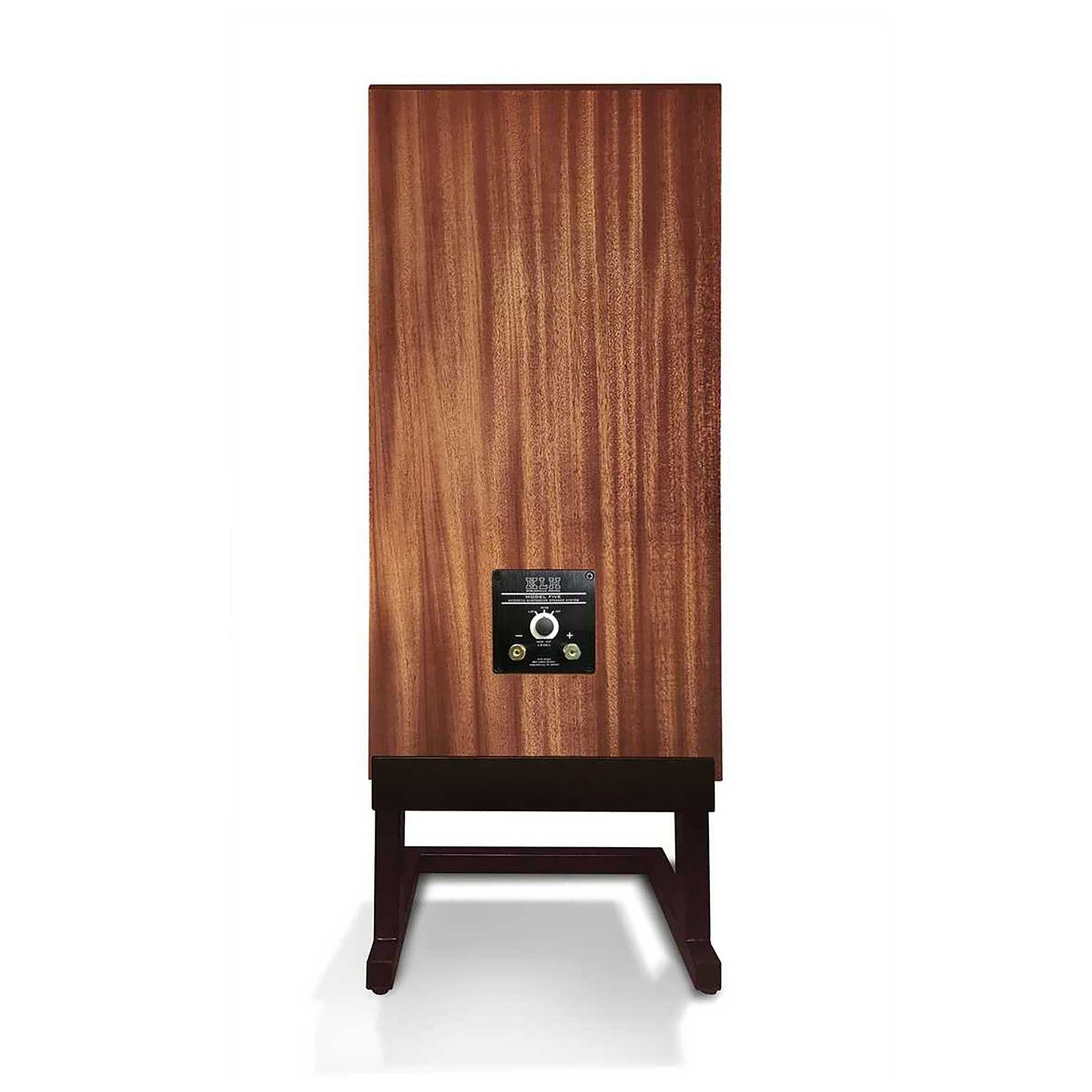

Inputs: Five-way gold-plated binding posts
Dimensions Without Included Base (WHD): 13.75" x 26" x 11.5"
Dimensions With Included Base (WHD): 13.75" x 34.25" x 13"
Weight (Without Base, With Base): 44 lb., 52 Ib.
